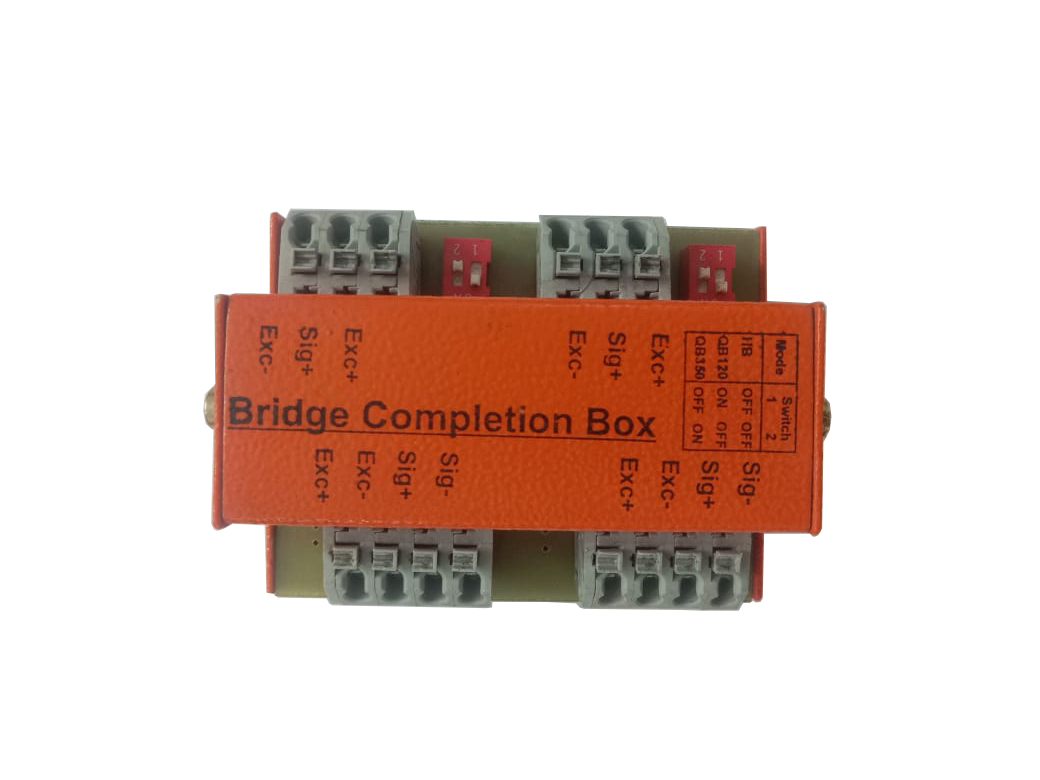

BRIDGE COMPLETION BOX
INTRODUCTION
Many/most measurement application(s) involve monitoring of strain at multiple points. Series SG-CM-XX-X-XX is a family of Bridge Completion Module which can be used with any other standard Digital Strain Indicators and/or Data Acquisition System.
Modules provide ease of measurement when a quarter bridge measurement is being done. It accepts Quarter bridge/ Half Bridge of 120 or 350 Ω and provides a full bridge output to a strain monitoring equipment.
Use of a Bridge Completion box reduces temperature effect too.
Specifications
| Parameter / Type | Specifications |
|---|---|
| Model |
SG-CM-01-X-XX SG-CM-02-X-XX SG-CM-04-X-XX SG-CM-08-X-XX |
| No. Of Measuring Points | 01 /02 / 04 / 08 Channels |
| Bridge method | Quarter Bridge (120 / 350 ohm) Half Bridge, Full Bridge |
| Connection | Screwing or soldering |
| Cable | ø9 mm, 4-core shielded cable 3 m with NDIS 7-pin plug |
| Dimensions |
(1) Single Channel (L x W x H) = 48 x 55 x 30 mm (2) Two Channel (L x W x H) = 72 x 55 x 30 mm (3) Four Channel (L x W x H) = 190 x 55 x 31 mm (4) Eight Channel (L x W x H) = 380 x 55 x 31 mm (except projecting parts) *Actual Dimensions can be different based on the project requirement and number of channels. ** We have capability have custom developed part also |
